Features:
- High Resolution 1.0 Megapixe 1/4’’ OV9712 CMOS Sensor
- 1280×720 resolution 25fps real time
- Support IE, Firefox, Google browser
- Support iphone, Android smart phone
- Weatherproof & Waterproof
- 24 IR LED With 20m IR Distance
- HD 1.0MP 720P
- P2P
- Day & Night vision
- Net weght: 0.25KG Approx
- High Quality ABS Plastic
specifications:
Camera | |
Sensor | 1/4” OV9712 CMOS |
Min illumination | Color:0.6Lux (F1.2, AGC ON),0 LUX with IR |
shutter | 1/50(1/60)s to 1/100, 000s |

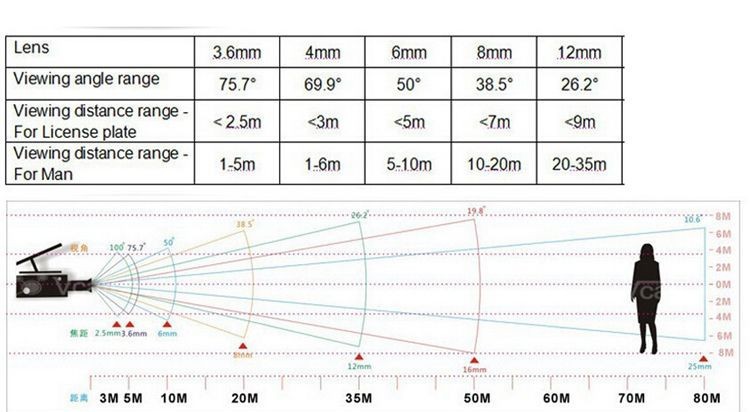

lens | Megapixel Lens 3.6mm |
Compression | |
Video compression | H. 264 High Profile, support dual stream, AVI format; support 0.1M~6Mpbs bit rate adjustable; support 1~30fps adjustable. |
Video bit rate | 100Kbps~6Mbps |
Image | |
Resolution | Main stream: 1280×720 |
Frame Rate | 50Hz: 25fps ( 1280×720 ) /60Hz: 30fps ( 1280×720 ) |
Image setting | Saturation, brightness, contrast can be adjusted via client side or IE browser |
Network | |
Storage | Via PC/Mobile Phone/NVR With HDD |
Intelligent alarm | Motion detect, video lost, network break, IP conflict, storage device full or error |
Protocol | 1 * RJ45, 10/100M; Support TCP/IP HTTP/RTSP/FTP/PPPOE/DHCP/DNS/DDNS/NTP/UPnP |
Basic | Support WEB remote configuration, OSD, motion detect, alarm input active to record, snapshot |
CMS, mobile(iPhone/Blackberry/Android/Symbian/windows), MYEYE(multiple devices management system), SDK | |
ONVIF Support | |
Interface | |
Communicating | 1pcs RJ45 10M/100M self adaptive Ethernet interface |
Video output | Support overlying DDNS, user name, password and other info. |
General | |
Working condition | -50~60 degree. humidity less than 90%(non-condensing) |
Power supply | DC 12V 1a-2A |
Protection level | IP65 /ABS Plastic Shell |
Package content:
1 * Camera
1 * CD
1 * Screws
Operations View:

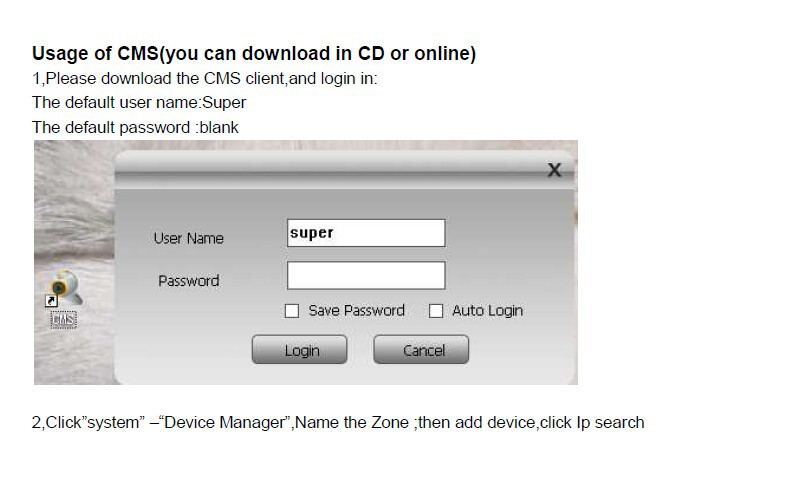

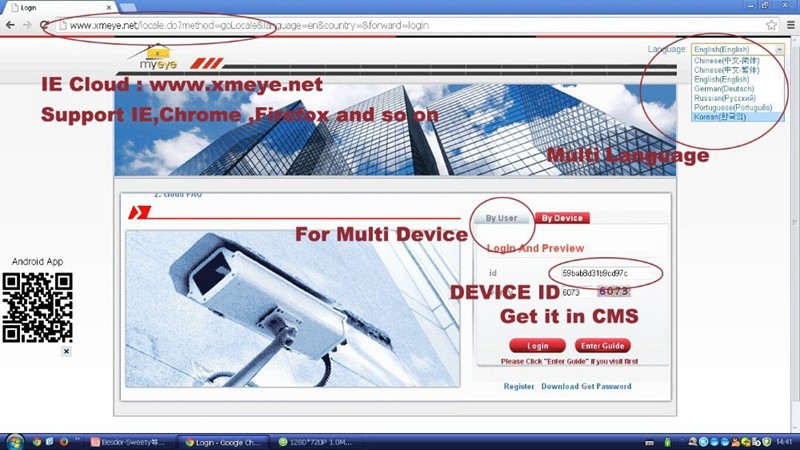

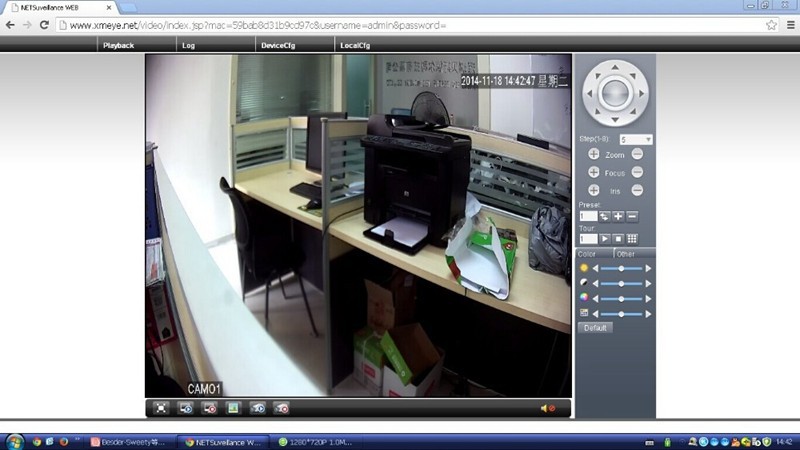

1. IE Cloud Security-Video Management System make it easy to monitor what you care no matter where you are!

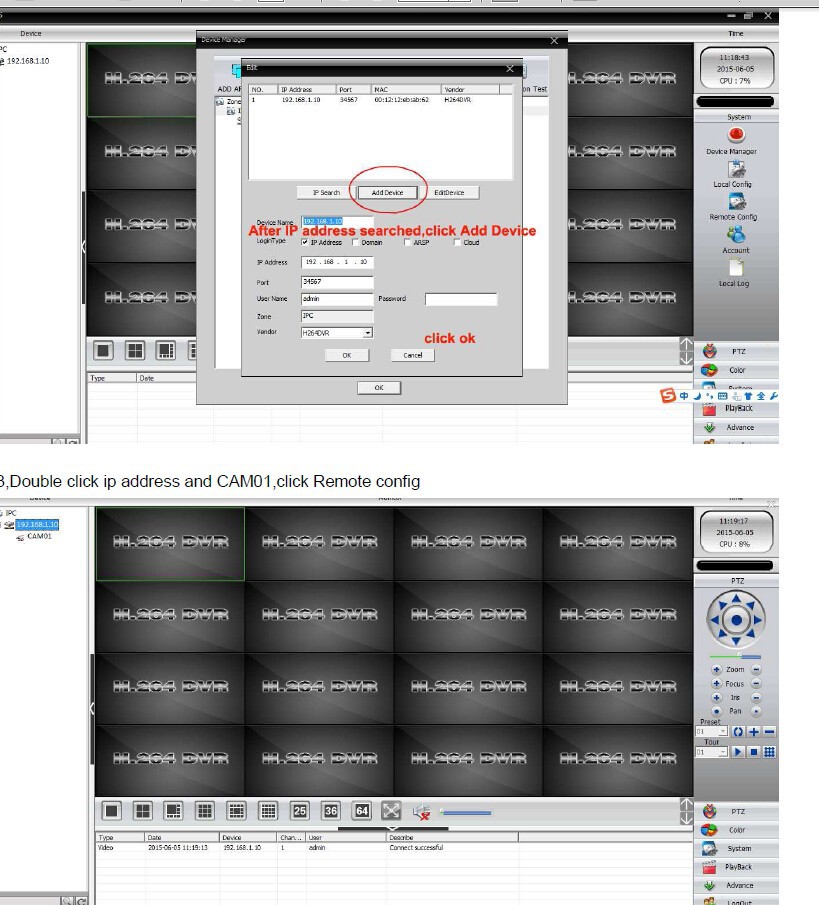

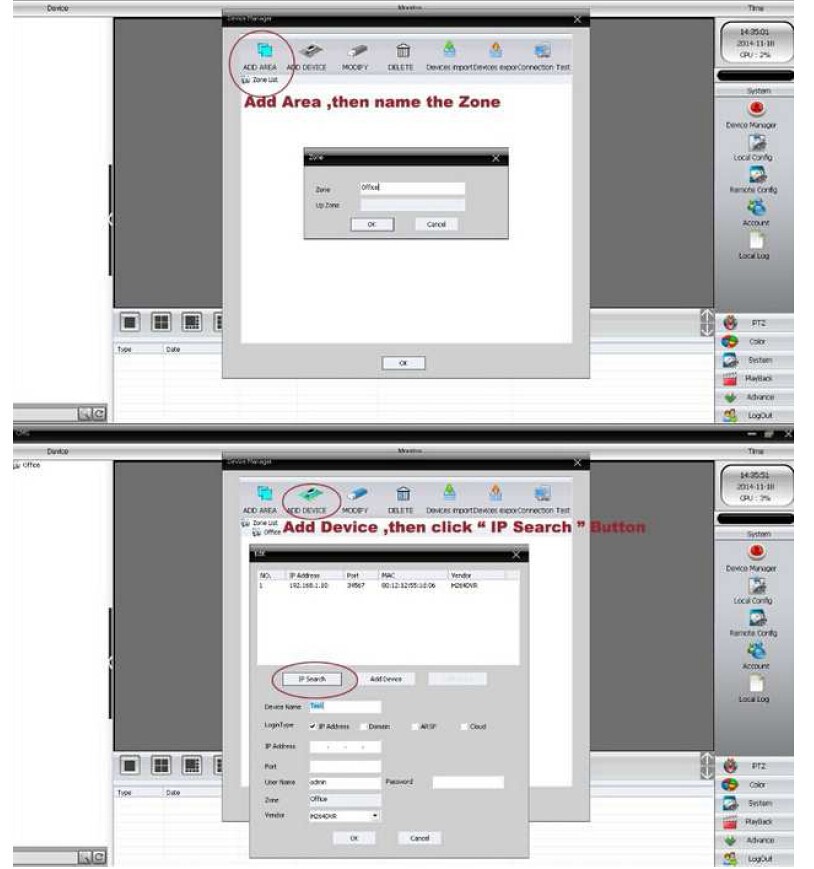

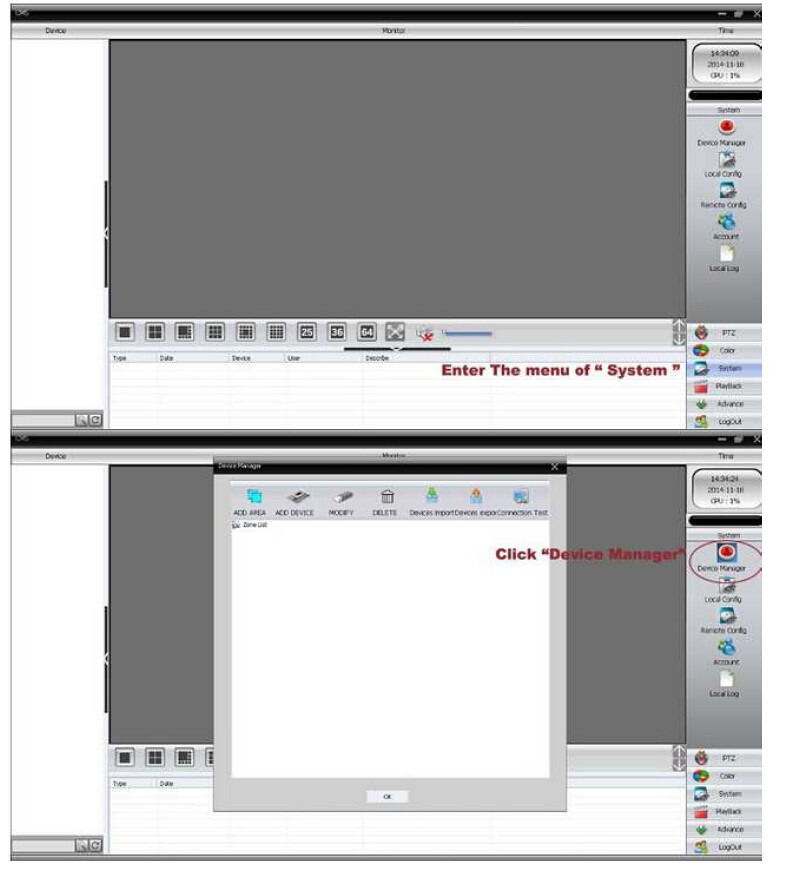

2. CMS for local net

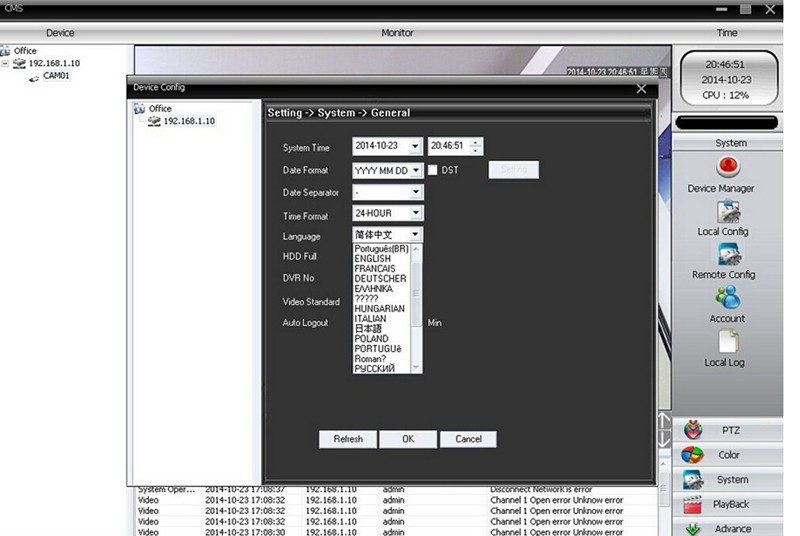

3,Multi-languages in CMS for your choices
